Selective Pallet Racking vs Drive-In vs Radio Shuttle: Warehouse Density, Forklift Access, and ROI Comparison

Oct 26, 2026

Guangzhou, Guangdong Oct 26, 2026 (Issuewire.com) - Warehouse spatial efficiency directly depends on aligning rack layout geometry with SKU handling frequency and forklift travel paths. Industrial storage centers evaluate structural configurations to optimize cubic capacity while preserving pallet throughput velocities across ambient and temperature-controlled facilities. Conducting a technical pallet racking system comparison across selective, drive-in, and radio shuttle platforms establishes clear engineering criteria for floor space utilization, equipment access, and capital amortization. Guangzhou HEDA Shelves Co., Ltd., founded in 2001 with over twenty years of structural steel manufacturing heritage and project deliveries across 130 countries, produces all three core pallet storage configurations. Comparing these systems across four fundamental technical and operational benchmarks defines their specific functional boundaries:

Volumetric Storage Density and Floor Utilization: Selective racking provides approximately 40% volumetric footprint utilization due to dedicated forklift operating aisles, whereas drive-in systems increase spatial density to 75%-85% by eliminating travel aisles, and radio shuttle configurations achieve 80%-85%+ cubic capacity with continuous ultra-deep storage channels.

Throughput Velocity and SKU Selectivity: Selective racking maintains 100% direct access to every stored pallet position for diverse inventories, drive-in systems operate primarily on Last-In, First-Out (LIFO) batch rotation with reduced forklift travel speeds inside rack channels, and radio shuttle platforms utilize automated shuttles traveling at 1.0 m/s unladen and 0.8 m/s loaded to reduce pallet handling cycle times by over 50%.

Equipment Safety and Structural Impact Mitigation: Selective racking experiences standard exterior aisle traffic, drive-in racking introduces higher structural contact exposure as forklifts repeatedly enter narrow column bays, and radio shuttle systems confine forklift travel entirely to the external aisle face, mitigating structural contact along internal storage lanes.

Capital Expenditure and Long-Term Lifecycle ROI: Selective racking requires the lowest initial capital investment with immediate payback, drive-in systems offer moderate upfront fabrication costs, and radio shuttle systems involve higher initial equipment outlays that amortize rapidly in high-throughput operations and -25°C cold storage environments through reduced refrigeration loss and optimized labor efficiency.

Selective Pallet Racking Mechanics for High-SKU Order Fulfillment

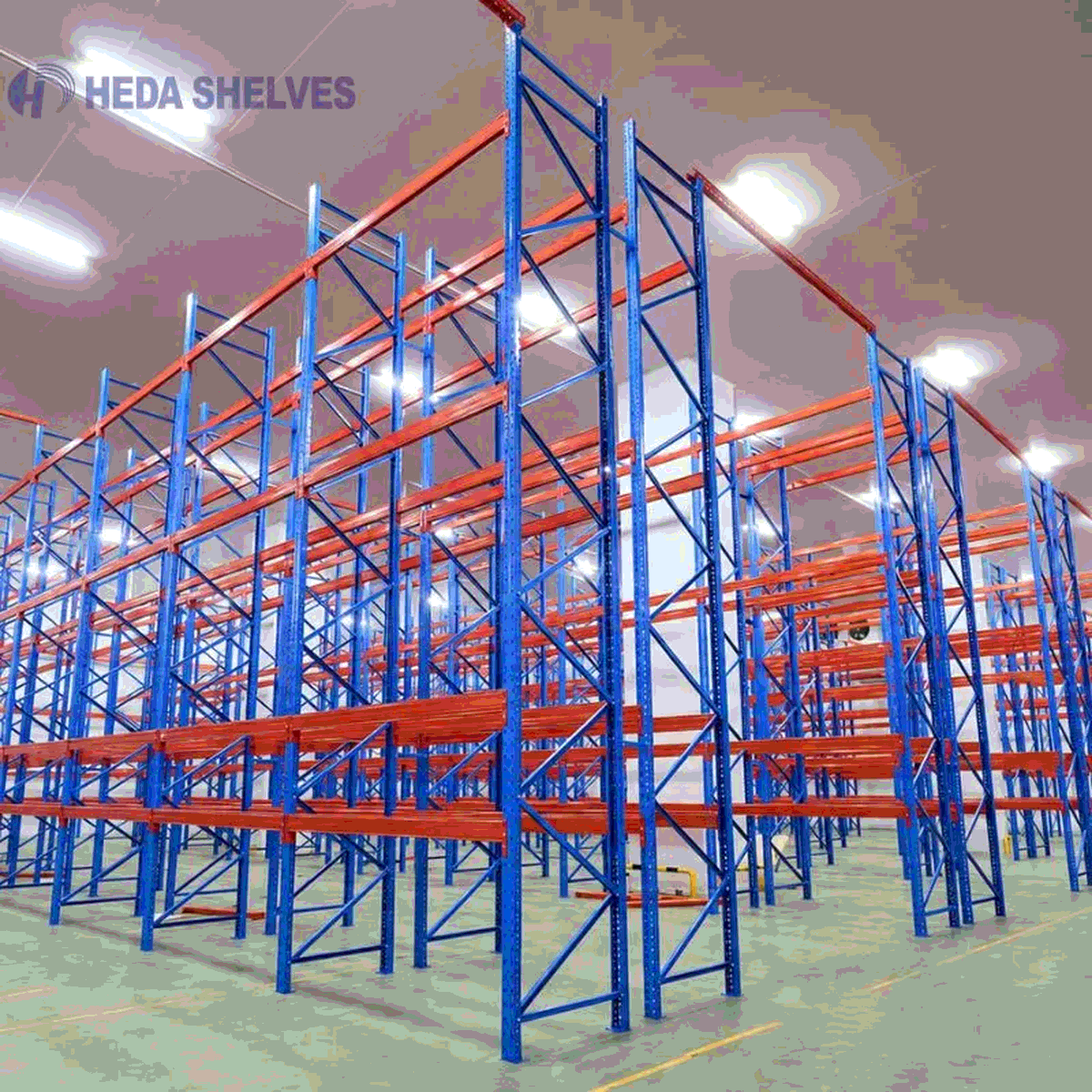

Standard selective pallet racking systems serve as the baseline architecture for high-mix, variable-SKU distribution operations. Built from cold-formed C-channel upright frames and adjustable step or box beams, the structure positions pallets in single-deep or double-deep rows along dedicated access aisles measuring 2.8 m to 3.5 m in width for standard counterbalance and reach trucks. This open geometry grants forklift operators direct, unhindered access to 100% of individual pallet positions without shifting adjacent stock. For facilities requiring higher density without migrating to automated equipment, double-deep configurations store two pallets front-to-back per bay, accessible via deep-reach trucks within narrow 1,600 mm to 2,200 mm aisles to increase storage capacity by up to 40% with only a minor trade-off in direct selectivity.

The primary mechanical value of selective racking is operational flexibility. With beam levels adjustable on 50 mm or 75 mm vertical pitch increments, warehouse teams adapt shelf heights to varying pallet load profiles ranging from 800 kg to 5,000 kg per tier. For retail fulfillment hubs, third-party logistics (3PL) facilities, and spare parts distribution centers handling thousands of active inventory stock-keeping units, selective racking supports rapid FIFO order picking cycles. However, because forklift travel aisles occupy up to 60% of total floor surface, selective configurations are less suited for high-density bulk storage where floor real estate costs dominate operating expenses.

Drive-In Racking Architecture for Bulk Homogeneous Inventory

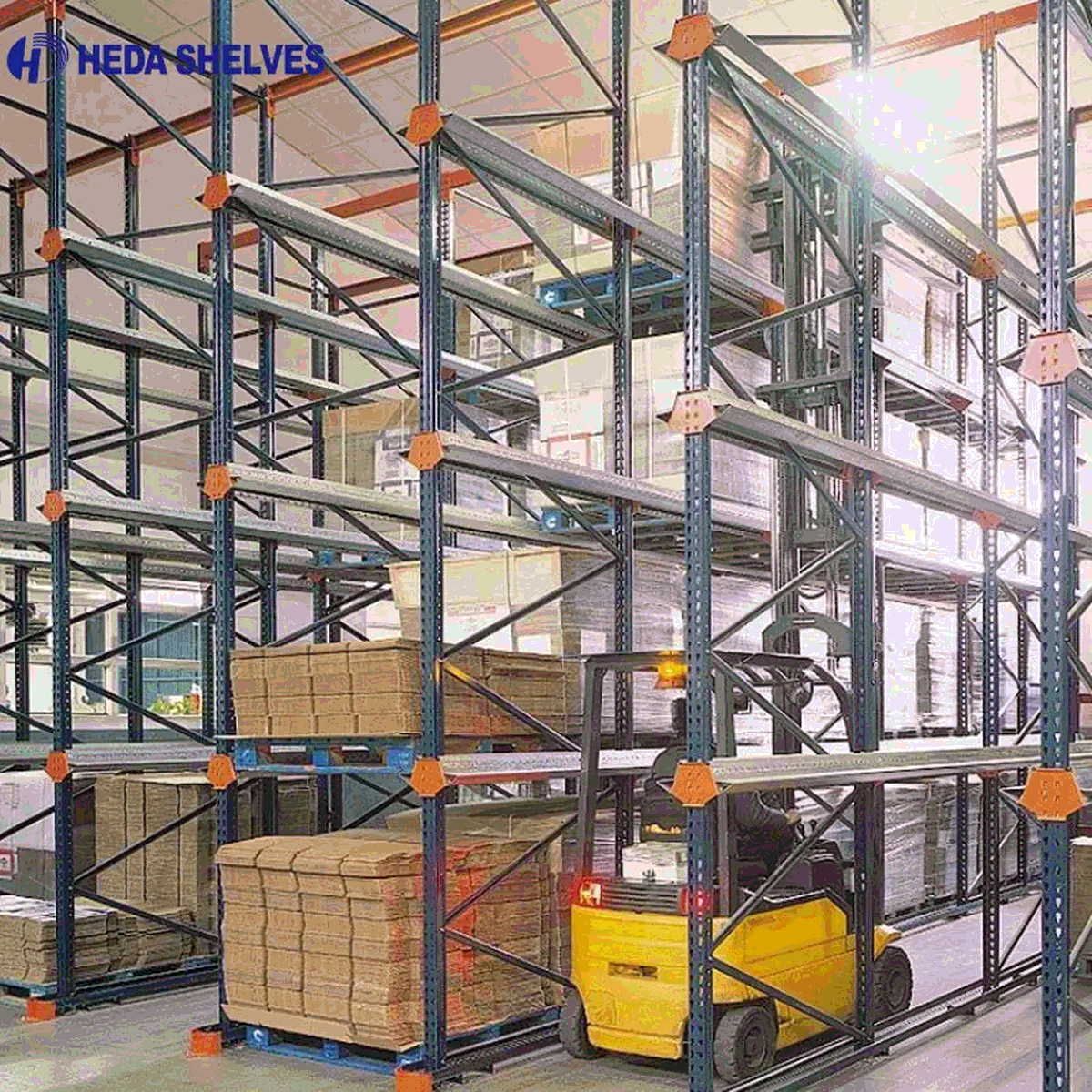

Drive-In pallet racking addresses bulk storage requirements by converting standard aisle space into continuous, multi-level storage lanes. Engineered as space-consolidating drive-in rack systems, upright frames are reinforced with top-tie structural beams, back-bracing trusses, and continuous heavy-gauge steel support rails (corbels) running along the depth of each bay. Forklifts drive directly into the racking matrix to deposit and retrieve pallets supported along their outer bottom edges by these structural rails.

By eliminating intermediate forklift access aisles, drive-in systems consolidate floor utilization up to 85%, accommodating 2 to 10 pallets in depth and 2 to 6 tiers in vertical height. This high-density architecture operates on a LIFO inventory rotation model, making it suitable for seasonal agricultural storage, bulk beverage distribution, and manufacturing buffer staging where large quantities of identical items are produced and shipped in uniform batches. Where strict batch expiration governs operations, HEDA also engineers Drive-Through configurations with dual-sided aisle entries to support FIFO picking. Pallet support rails and cantilever corbel arms are rated to carry 800 kg to 1,500 kg per pallet position, providing sustained structural rigidity across multi-tier storage channels. To preserve structural upright alignment during continuous forklift transit inside the narrow lanes, HEDA Shelves integrates floor-anchored steel guide rails and wrap-around column base protectors that guide forklift wheels safely through every storage channel.

Radio Shuttle Automation for High-Throughput and Cold Chain Operations

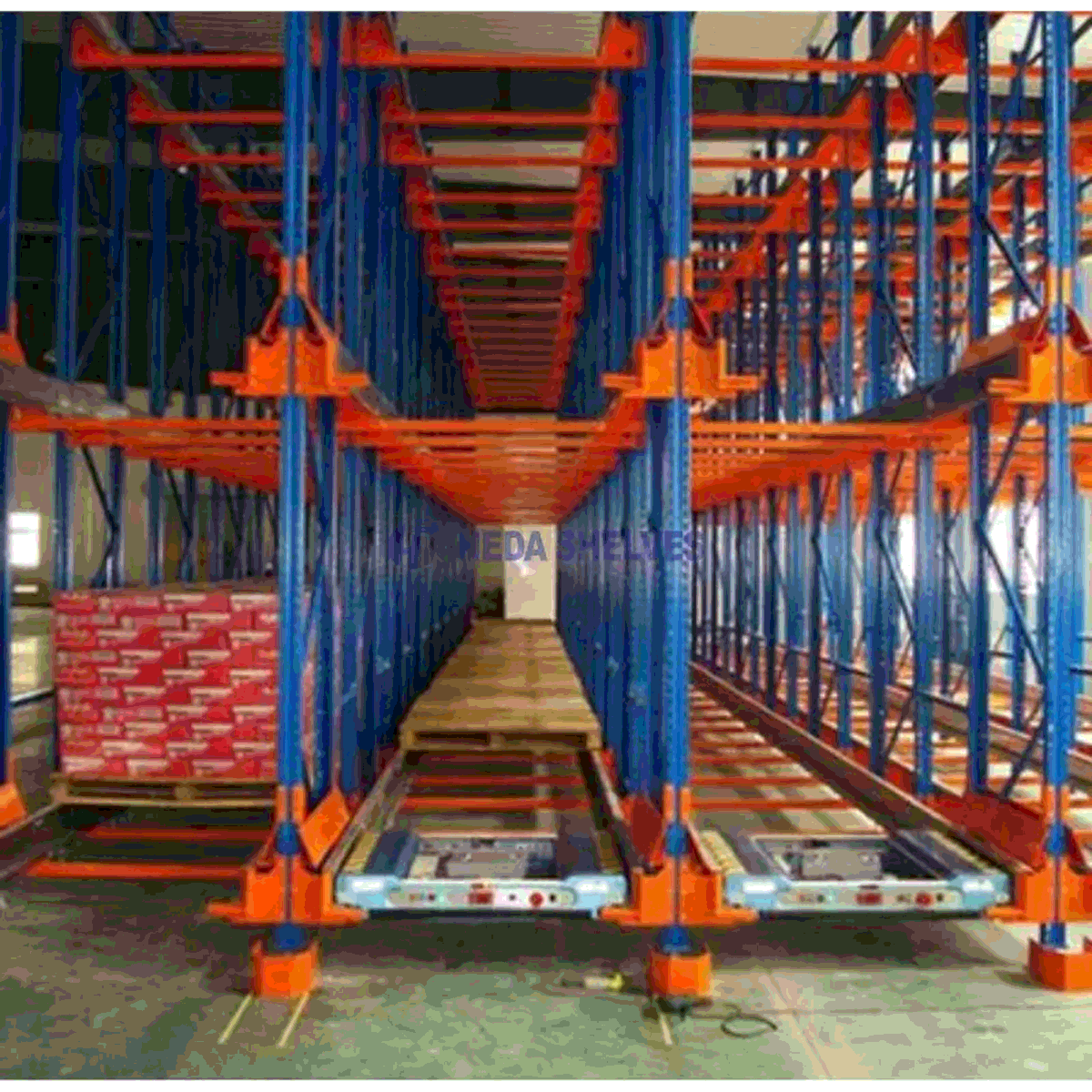

Semi-automated high-density radio shuttle racks represent an advanced evolution of high-density channel storage. Instead of requiring forklifts to navigate inside narrow rack channels, the system employs an independent battery-powered shuttle cart that travels autonomously along precision-formed galvanized running rails embedded beneath the pallet storage level. The forklift operator places the shuttle and pallet at the channel entry, then issues wireless transfer commands via a handheld remote control or vehicle-mounted terminal.

The radio shuttle transports pallets deep into the lane at speeds of 1.0 m/s empty and 0.8 m/s fully loaded, automatically executing continuous indexing, replenishment, and retrieval tasks. Powered by quick-swap lithium-ion battery packs that sustain 6 to 8 hours of continuous operation, each cart is guided by precision end-of-lane mechanical stoppers and optical sensors to mechanically arrest carriage movement and safeguard against pallet overruns. This automated mechanism supports both FIFO and LIFO operational logics, with channel storage depths extending past 20 to 40 pallets per lane. In -25°C cold chain warehouses, radio shuttle automation delivers substantial operational returns. Confining forklift movements to exterior staging aisles keeps cold room dock doors closed longer, stabilizes interior refrigeration temperatures, and minimizes forklift battery thermal discharge within sub-zero zones. Keeping heavy mobile equipment outside internal storage channels protects upright columns and bracing members from recurring vehicle contact.

Shared Structural Steel Standards and Vertical Manufacturing Control

Regardless of the chosen storage architecture, overal warehouse structural safety relies on raw material integrity and manufacturing precision. HEDA Shelves fabricates selective, drive-in, and radio shuttle components using certified Q235B high-tensile cold-rolled structural steel. All steel coils undergo spectral composition analysis and tensile yield testing to verify mechanical strength before roll-forming.

Manufacturing takes place across dedicated automated production facilities equipped with multi-station CNC continuous cold-punching equipment, heavy-duty continuous roll-forming lines, and robotic welding cells. Upright profiles, beams, cantilevered corbel arms, and shuttle guide rails are processed with strict dimensional tolerances to facilitate smooth mechanical assembly. All steel surfaces undergo multi-stage chemical pretreatment, electrocoating, and automated electrostatic polyester powder coating cured at high baking temperatures, yielding a 60 to 80 micron durable finish compliant with CE-CPR and ISO 9001:2015 quality standards across an operating capacity supporting 30,000 tons per month.

Application-Driven Selection Framework and Economic ROI Evaluation

Selecting the appropriate storage system requires analyzing three interrelated variables: inventory profile (SKU quantity versus batch volume), picking velocity, and facility operating overhead:

High-Diversity Ambient Distribution Centers: Selective pallet racking provides the most economical capital entry point for facilities managing over 500 unique SKUs with rapid individual unit picking, delivering complete accessibility with the lowest initial rack expenditure.

Bulk Manufacturing and Seasonal Staging Warehouses: Drive-in racking delivers an optimal balance of high cubic storage density and moderate equipment investment for operations managing fewer than 20 homogeneous SKUs in large production runs.

Cold Storage Facilities and High-Velocity Logistics Hubs: Radio shuttle systems deliver accelerated 3- to 5-year lifecycle capital amortization for refrigerated warehouses and fast-moving consumer goods (FMCG) distribution centers. Although initial capital outlay is higher due to shuttle cart hardware and precision rails, the system achieves lower labor costs, reduced refrigerated building footprints, decreased thermal energy consumption, and lower structural maintenance expenses.

To review warehouse blueprints, evaluate comparative density layouts, and obtain direct factory engineering proposals for selective, drive-in, or radio shuttle storage installations, connect directly with the technical department of HEDA Shelves through the official international portal at https://www.hedarackstorage.com/.
